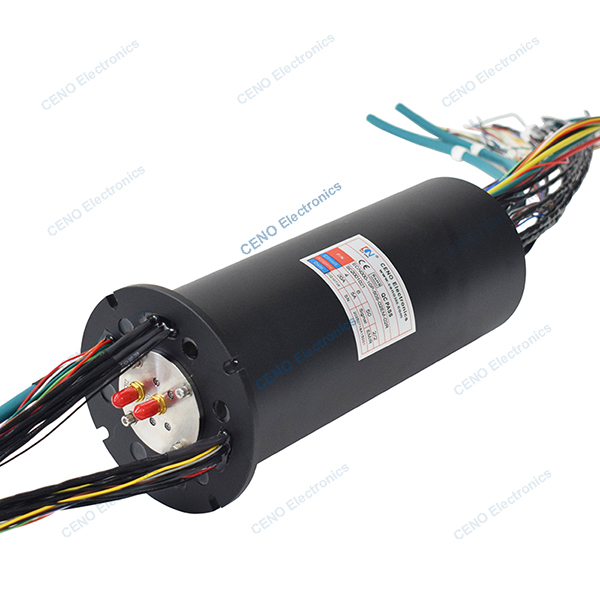

Low temperature integrate electric power Ethernet & RF Rotary union slip ring
ECN000-10P-50S-02EM-02R is CENO integrate slip ring combine circuits electric power, Ethernet signal and 2 channels radio frequency. RF slip rings are specifically designed and categorized by transmission frequency into low-frequency RF slip rings and high-frequency/microwave slip rings. Low-frequency RF slip rings are relatively simple to manufacture and are relatively inexpensive. High-frequency/microwave slip rings are difficult to design and manufacture, requiring extremely high standards for materials and structure, and are therefore expensive. For more information please contact us.
Specification
|
ECN000-10P-50S-02EM-02R
|
Specification |
| Current & Circuits |
4*20A; 6 * 5A; 50 * Signal; 2 * Ethernet signal |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-40°C~+60°C |
| Working humidity |
60%RH |
| IP protection grade |
IP51 |
| Operating speed |
0~100rpm |
| Outer diameter |
Ø90mm |
| Contact material |
Precious metal |
| Housing material |
Aluminium Alloy |
| Lead wire length |
As customized |
| Rotation way |
Flange installation |
| Radio frequency |
Parameters |
| |
Channel1 |
Channel 2 |
| Connector type |
SMA-f (50Ω) |
SMA-f (50Ω) |
| Style |
Style I |
Style I |
| Frequency range |
DC to 8GHz |
DC to 8GHz |
| WSR (max) |
1.4 |
1.5 |
| WSR floating (max) |
0.15 |
0.2 |
| Insert loss |
0.7dB |
1.1dB |
| Insert loss (max) |
0.1dB |
0.1dB |
| Average power |
10W@1Ghz |
10W@1Ghz |
| Isolation |
70dB |
70dB |
Features
- High frequency and option channels
- Different structure as customized
- 2 Channels and optional
- Suit low temperature environment
- Install easy & Free maintenance
Applications
- Radar antenna
- High definition video
- Air traffic control radar
- Satellite earth station
- EMC system
Optional
- Circuit, Voltage, Current
- Channels and signals
- Structure and Materials
- Protection grade
- Working speed & temperature
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
